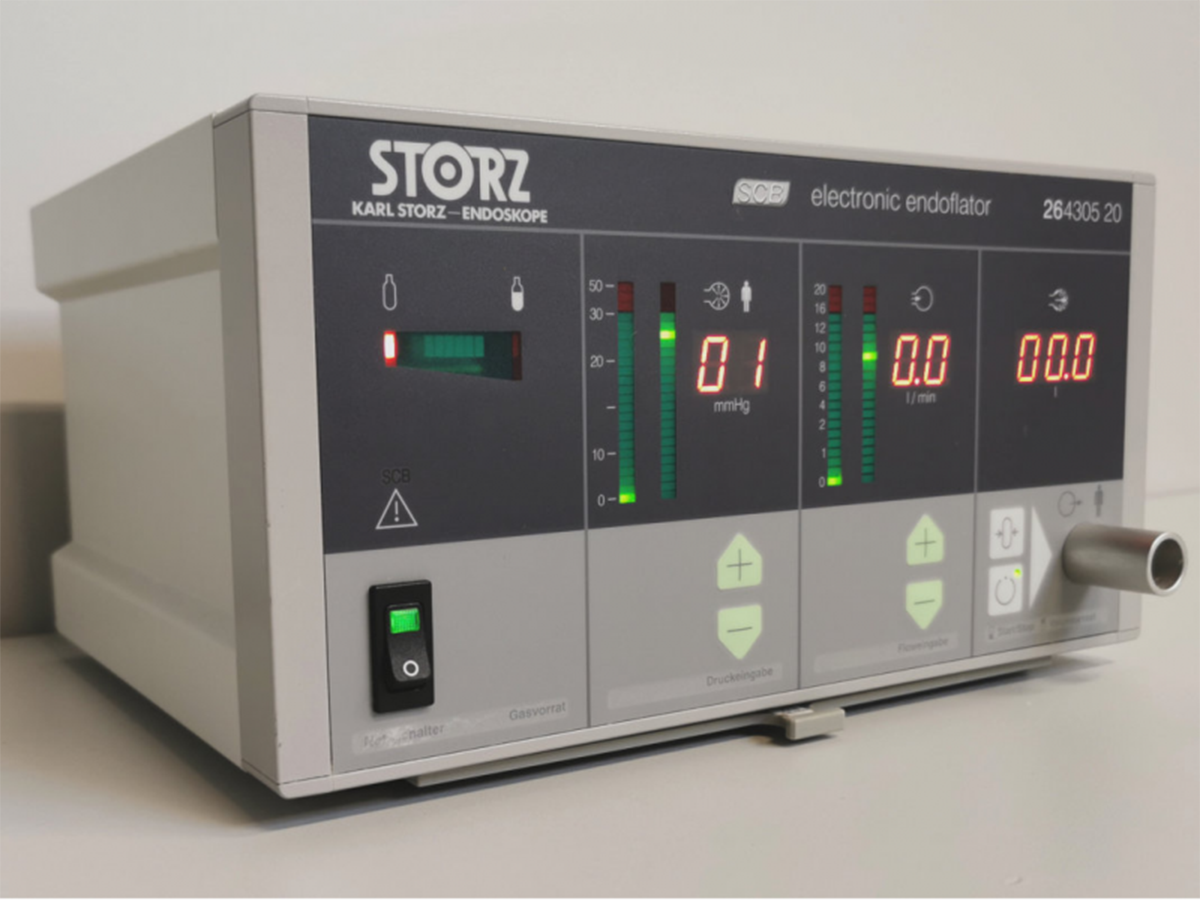

The Karl Storz Endoflator 20 is an insufflation device used in laparoscopic and minimally invasive surgical procedures. The device is designed to deliver and regulate carbon dioxide (CO₂) gas into the abdominal cavity, which is necessary for creating a pneumoperitoneum—a working space for the surgeon to perform laparoscopic surgery by expanding the abdomen.

Key Features of the Karl Storz Endoflator 20:

1. Gas Flow Rate:

   • The Endoflator 20 typically provides a gas flow rate of up to 20 liters per minute (L/min). This high flow rate ensures rapid insufflation, allowing the surgical team to establish the pneumoperitoneum quickly, which is essential for minimizing procedure time.

2. Pressure Control:

   • The device maintains precise control over the intra-abdominal pressure to ensure patient safety. It usually operates at a preset pressure range that can be adjusted based on the specific needs of the surgery (typically between 10-15 mmHg).

3. Safety Features:

   • The Endoflator is equipped with advanced safety mechanisms to avoid over-insufflation, which could cause complications such as gas embolism or damage to internal organs.
   • It automatically stops insufflation if a preset pressure threshold is exceeded, ensuring stable and safe pressure throughout the surgery.

4. CO₂ Heating:

   • Many modern insufflators, including the Endoflator 20, have optional CO₂ gas heating to warm the gas before insufflation. This helps in preventing hypothermia, which can occur if cold gas is introduced into the body cavity.

5. Compatibility:

   • The Endoflator 20 is compatible with Karl Storz endoscopic systems and is often used in conjunction with their other surgical instruments and cameras.

6. User Interface:

   • The device typically features a digital interface for easy monitoring and control of flow rates and pressure. Surgeons or operating room staff can quickly adjust the settings during the procedure.

7. Low Noise:

   • Designed for quiet operation, so it doesn't disrupt the surgical environment.

Applications:

• Laparoscopy: Used in general surgery, gynecology, and urology procedures that require the abdomen to be inflated for better visualization and access to organs.
• Thoracoscopy: In some cases, for creating space within the thoracic cavity for minimally invasive lung or heart procedures.

Considerations:

• Sterilization: Tubing and other accessories need to be properly sterilized to ensure the system is safe for use.
• Maintenance: Regular calibration and servicing of the device ensure its reliability and accuracy, especially in maintaining correct pressure settings.

The Endoflator 20 is an important tool for any facility performing laparoscopic surgeries, ensuring efficient, controlled gas delivery during procedures.
