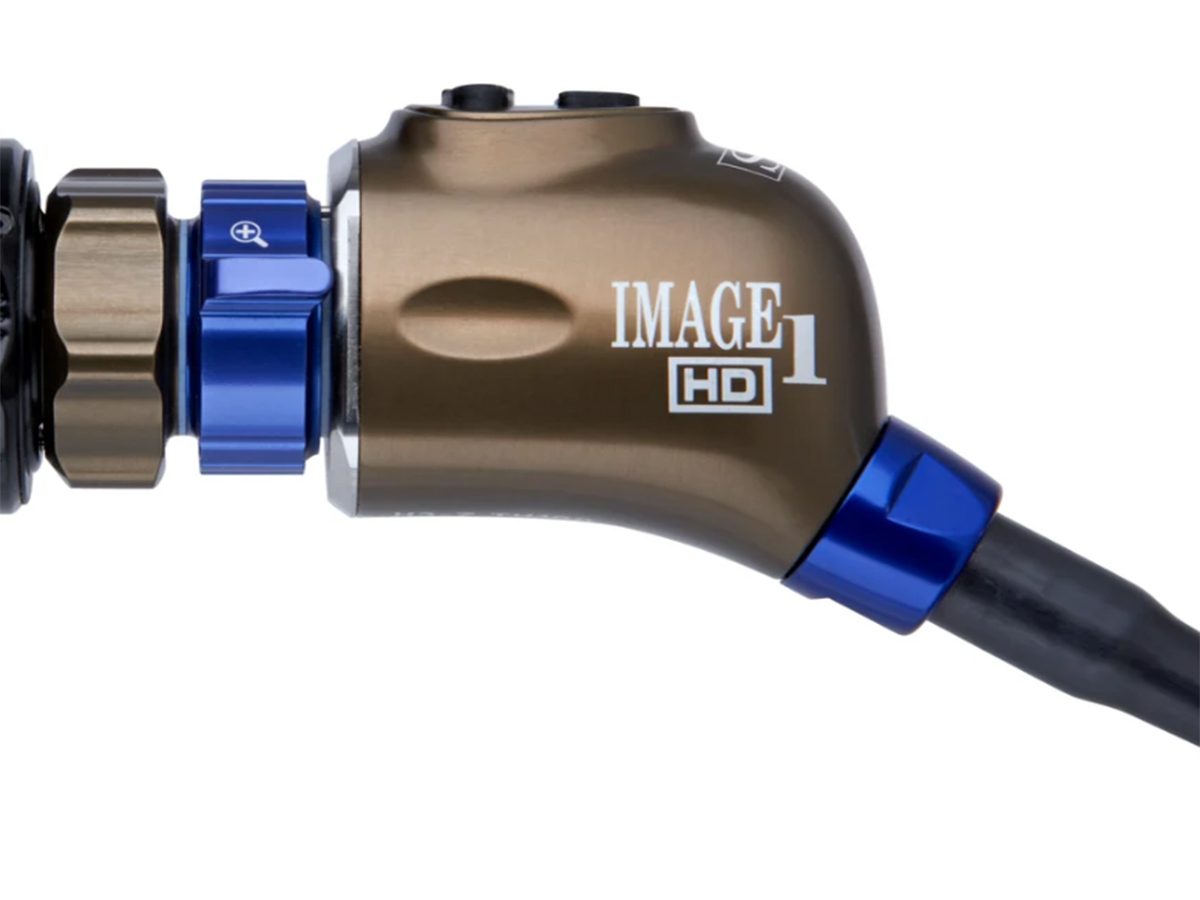

The Karl Storz Image 1 S H3-Z is part of the Karl Storz IMAGE 1 S system, a highly advanced, modular imaging platform used in minimally invasive surgeries. The H3-Z specifically refers to the H3-Z camera head, a key component that offers cutting-edge imaging technology to ensure high-quality video and image capture during surgeries.

Key Features of the Karl Storz IMAGE 1 S H3-Z Surgical Camera:

1. 4K Resolution and Full-HD Imaging

• The H3-Z camera head is capable of capturing images and videos in 4K resolution, providing ultra-high-definition visuals for improved clarity during surgery. This level of detail is critical for surgeons performing intricate procedures where precise visualization of tissues, blood vessels, and structures is essential.
• Additionally, the system supports full HD video, making it versatile for a range of surgical applications.

2. Modular Imaging Platform

• The IMAGE 1 S system is modular, meaning it allows integration of different components (camera heads, light sources, etc.) based on surgical requirements. The H3-Z camera head is just one part of this modular setup and can be easily upgraded or swapped with other imaging components as needed.

3. 3-Chip Technology

• The H3-Z camera head utilizes three-chip (3CCD) technology. Each chip captures one of the primary colors (red, green, and blue) individually, producing highly accurate color reproduction. This is crucial during surgery when distinguishing between different tissue types and blood vessels is necessary for successful outcomes.

4. Zoom and Autofocus

• The H3-Z has a motorized zoom function, allowing surgeons to adjust the field of view without physically moving the camera. This provides a greater range of flexibility during surgery, especially in confined areas where it may be challenging to reposition the camera.
• It also features an autofocus function, ensuring that the image stays sharp even when the camera is moved or zoomed in and out.

5. IMAGE Enhancement Technologies (IE)

• The IMAGE 1 S H3-Z system supports various image enhancement technologies that help improve the visibility of specific anatomical structures. Some of the key enhancements include:
  • Chromoendoscopy-like modes: Enhances contrast between different types of tissues.
  • Spectral modes: Provides better visualization of blood vessels and lesions by using narrow-band imaging.

6. Lightweight and Ergonomic Design

• The H3-Z camera head is designed to be lightweight and ergonomically comfortable for surgeons to use during long procedures. This reduces surgeon fatigue and improves maneuverability during surgery.

7. Compatibility with IMAGE 1 S Platform

• The H3-Z camera head is fully compatible with the Karl Storz IMAGE 1 S platform, which integrates with other surgical devices, OR systems, and archiving systems (like PACS). This allows for seamless transfer and storage of surgical data, enhancing workflow efficiency.

8. Efficient Integration with Operating Rooms

• The H3-Z works with the Karl Storz OR1™ integration solution, which connects different devices in the operating room for centralized control. This allows surgeons to manage video feeds, lighting, and other surgical tools from a single control panel.

9. Visualization in Specialized Fields

• The H3-Z camera is widely used in various surgical fields, including:
  • Laparoscopy
  • Urology
  • Gynecology
  • ENT (Ear, Nose, and Throat)
  • Orthopedics
  • Neurosurgery

The advanced imaging technology ensures that surgeons have clear, real-time views of the surgical site, which is essential in these precision-dependent specialties.

Benefits:

• Superior Image Quality: 4K and 3-chip technology provide crisp, detailed images that support better surgical precision.
• Versatility: With its compatibility across a range of applications and the modular nature of the IMAGE 1 S system, it can be adapted for use in different surgeries.
• Ease of Use: Features like autofocus and motorized zoom improve the efficiency of the surgical team, allowing them to focus on the procedure rather than camera adjustments.
• Enhanced Safety: Improved visualization can help reduce complications by giving surgeons clearer views of anatomical structures.

The Karl Storz IMAGE 1 S H3-Z camera system is a key component in modern operating rooms, enhancing both the efficiency of surgeries and patient outcomes through superior imaging.
