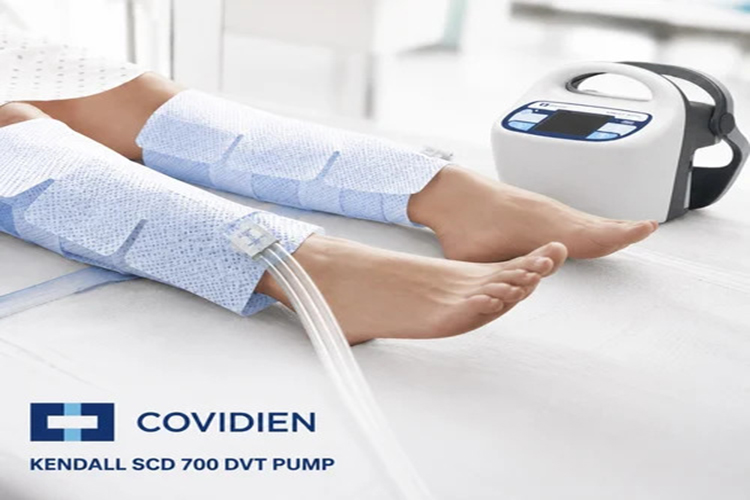

Covidien Kendall SCD 700 Series
Covidien Kendall SCD 700 Series is a Sequential Compression Device (SCD) / intermittent pneumatic compression system used in hospitals to improve venous circulation and help prevent deep vein thrombosis (DVT) and pulmonary embolism
It supports:
- Leg compression
- Foot compression
- Sequential/gradient/circumferential compression with leg sleeves
- Uniform compression with foot cuffs
- Vascular refill detection
- Automatic pressure adjustment
- Battery operation for mobile use
- Compliance monitoring
- Built-in fault detection and alarms
Technical specifications
| Item | Specification |
|---|---|
| Compression type – legs | Sequential, gradient, circumferential |
| Compression type – foot | Uniform |
| Leg compression cycle | 11 seconds |
| Foot compression cycle | 5 seconds |
| Decompression | Based on vascular refill detection |
| Device classification | Class I |
| Applied part | Type BF |
| Operation | Continuous |
| Ingress protection | IP23 |
| Electrical standards | UL 60601-1, EN 60601-1, IEC 60601-1-2 and others |
| Controller | Portable electronic pneumatic controller |
| Battery | Rechargeable battery system |
| Applications | Hospital / clinical DVT prophylaxis |
The manufacturer's service documentation lists the above compression characteristics and safety
