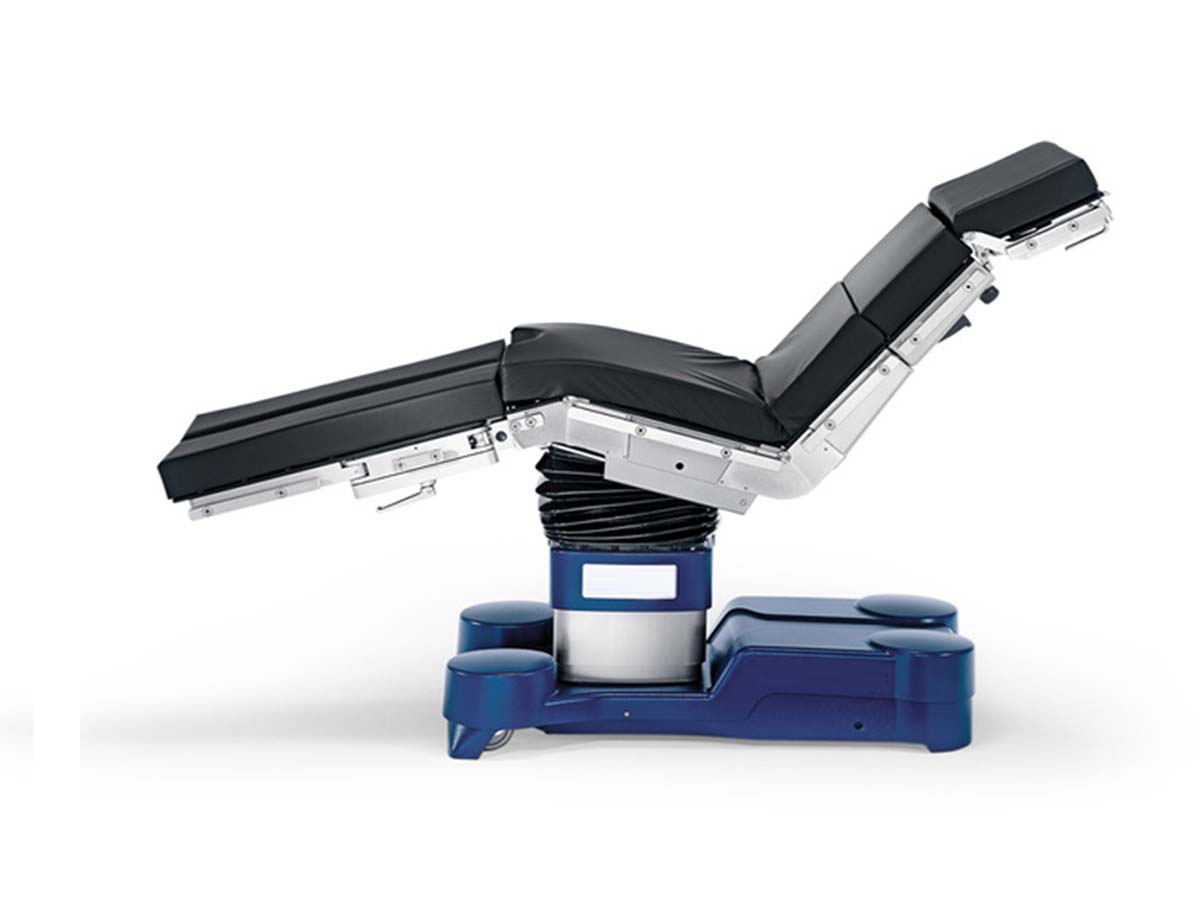

The Maquet Alphamaxx is an advanced surgical operating table designed for versatility, durability, and ergonomic use across various surgical disciplines. Manufactured by Getinge (Maquet brand), it's widely used in hospitals and surgical centers for both general and specialized procedures.

Key Features of Maquet Alphamaxx:

1. Modular Design

   • Interchangeable tabletop sections

   • Adaptable for different surgical disciplines: general surgery, orthopedics, urology, neurosurgery, etc.

2. High Load Capacity

   • Supports patient weight up to 450 kg (approximately 1,000 lbs), depending on the model and configuration.

3. Motorized Adjustments

   • Electric control of height, Trendelenburg/reverse, lateral tilt, longitudinal slide, and backrest.

   • Handheld remote or optional foot control.

4. Longitudinal Slide

   • Offers up to 460 mm of sliding range for optimal access during imaging (C-arm/X-ray).

5. Radiolucent Tabletop

   • Allows easy integration with imaging devices like C-arms or intraoperative CT/MRI.

6. Battery Powered

   • Internal rechargeable batteries allow operation without direct power connection during surgery.

7. Safety and Ergonomics

   • Anti-collision system

   • Brake system with indicators

   • High degree of positioning flexibility

Common Configurations/Accessories:

• Carbon fiber sections for radiolucency

• Leg supports, headrests, armboards

• Orthopedic traction frames

• Shoulder supports and body straps

 Dimensions (Typical):

• Height range: approx. 600 – 1,100 mm

• Tabletop length: ~2,200 mm

• Width (without rails): ~540 mm
